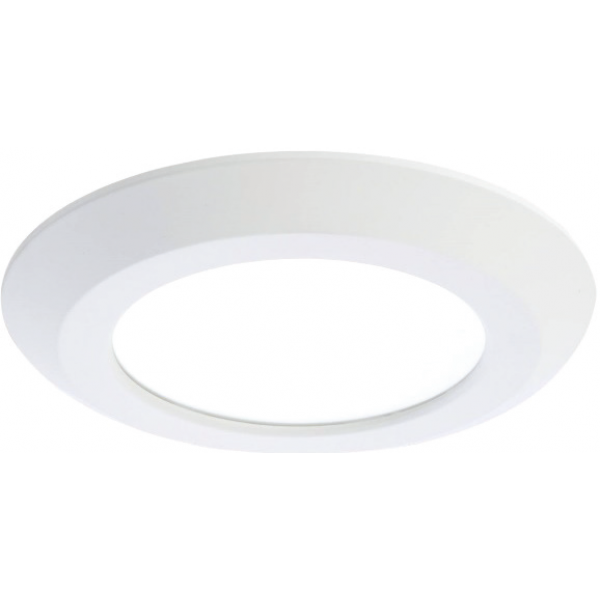

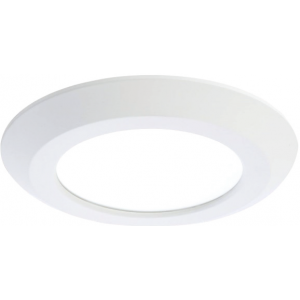

LED Disk Light

APPLICATION

The LDL Series LED LED disk light provides versatile lighting on standard line voltage, yet produces the high energy savings you desire from LED fixtures. The LDL series allows for easy upgrade your downlighting from the traditional recessed cans to a more modern looking, energy efficient solution. This disk light can be easily mounted onto a junction box or can be retrofitted into an existing recessed can with the optional hardware mounting adapter (not included).

FEATURES

• DRIVER ON BOARD

• High-transmission (White) Acrylic lens with excellent distribution and uniformity.
• Full distribution LED Luminaire.
• 120V AC with Driver on Board Technology.
10-100% triac dimming, compatiable with most triac dimming
switches in the market.
• Can be retrofit into most 5” or 6” recessed downlights or surface mounted for new construction applications
• Designed for a 50,000 Hour Life.
• Available in 3000K or 4000K Kelvin temperatures
• Environmentally friendly - contains no mercury or other hazardous materials
• IC rated when used in an approved IC rated recessed can

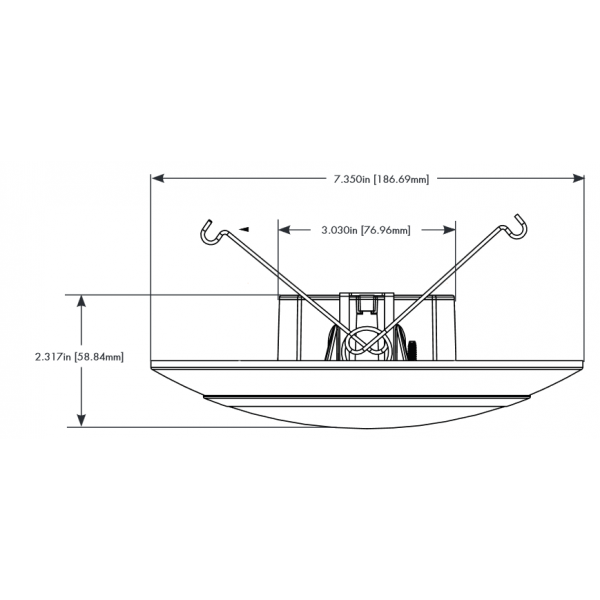

DIAMETER

4-4”
6- 6”
9-9”

DRIVE TYPE

120D- 120V, Triac Dimming

277D- 277V

WATTAGE

4” Housing
13- 13W (800 Lumens)
6” Housing
13-13W (1000 Lumens)

COLOR TEMPRATURE

830-80 CRI; 3000 Kelvin
840- 80 CRI; 4000 Kelvin
930-90 CRI; 3000 Kelvin
930-90 CRI; 3000 Kelvin

FINISH

NS- Nickel Satin
ORB-Oil Rubbed Bronze
WH- White
