High Bay 360° Passive Infrared - High Bay Sensor

High Bay 360° Passive Infrared - High Bay Sensor

Price Offer: 10/pk Price $283.33/pk

Minimum Order: 1 pack (10 Units) $283.33 (Limited Offer till Stock)

Description:

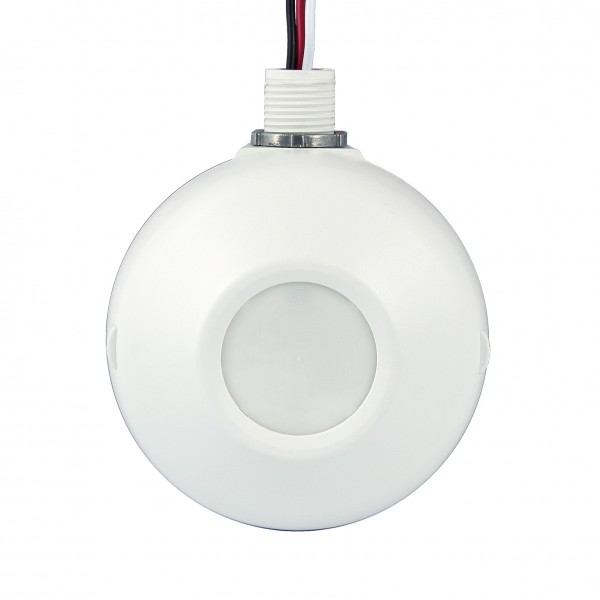

The MPC-50H occupancy sensor is designed for automatic lighting control in high bay applications, such as warehouses, distribution centers, gymnasiums, and areas with direct access to the lighting fixtures, specifically for indoor locations. Line Voltage Ceiling Sensor PIR.

Features:
•LED indicator of occupancy detection for easy verification of coverage
•Easy front access to time delay, sensitivity range and ambient light level adjustment
•Easy mounting using ½” knockout at end of luminaire fixture
•Hardware choices for side and back mount
•Compatible with all program start ballasts
•Zero crossing circuitry reduces stress on relay and extends sensor life


Specifications:
Voltage .................................................................................................................................................... 120/277VA,50/60Hz


Load Requirements:
@ 120VAC .......................................................................................................................................800W ballast or tungsten
@ 277VAC ........................................................................................................................................................1200W ballast
@ 120VAC ....................................................................................................................................................................1/4 hp
Adjustable Light Level ...................................................................................................................................... 10FC—150FC
Sensitivity Adjustable ..................................................................................................................... 50% or 100%(DIP switch)
Operating Temperature..................................................................................................................... 32°to 131°F (0°to 55°C)
Relative Humidity ............................................................................................................................ 20-90%, non-condensing
Controls ............................................................................................................................Light Level Knob and Dip Switches
Material............................................................................................................................................................................. ABS
Warranty.......................................................................................................................................................................2 years

Testing and Code Compliance:
•UL/CUL Listed device
•California Title 24

Dimensions:



Coverage:

Lens Specifications:
MPC-50H-L1: Mounting height..................................................................................................................................................................50ft Field of view ..................................................................................................................................................................... 360° Coverage..................................................................................................................................................................2800 sq.ft
MPC-50H-L2: Mounting height....................................................................................................................................................................8ft
Field of view ..................................................................................................................................................................... 360°
Coverage..................................................................................................................................................................1200 sq.ft

Dip Switch Setting:

The MPC-50H has 4 DIP switches under the cover. They are used to set sensitivity and time delay feature settings.
First switch: Changes the sensitivity of the sensor, increasing or decreasing the range and height of detection.
Second, Third, and Forth: Through a combination of these switches outlined in the table above, the times at which the loads will turn off can be changed.

Wiring Diagram:

Components:
